GI , Carbon Steel Top Hat Purlin Cold Roll Forming Machine With Manual / Hydraulic Uncoiler

Name: GI Carbon Steel Top Hat Purlin Cold Roll Forming Machine With Manual Hydraulic Uncoiler
Brand: TECHWELL
Price: 1 USD

China GI , Carbon Steel Top Hat Purlin Cold Roll Forming Machine With Manual / Hydraulic Uncoiler wholesale

Brand Name : TECHWELL

Model Number : TW-HCM100

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Contact us

Payment Terms : 40% T/T in advance, 60% T/T before shipment

Supply Ability : 20 sets

Delivery Time : 55-65 working days

Packaging Details : Standard packing

Material Thickness : 1.5-2.5mm

Cutting : Hydraulic Post-cutting

Main Power : 15KW

Material : GI. Carbon Steel

Formign Speed : 0-15m/min

Drive Type : Chain of Transmission

Contact Now

GI , Carbon Steel Top Hat Purlin Cold Roll Forming Machine With Manual / Hydraulic Uncoiler

Main Specifications of Top Hat Purlin Roll Former

Coil Material	Thickness	1.5-2.5mm
	Coil width	Custom-made
	Yield Strength	250-350Mpa
	Material	GI. Carbon Steel
Decoiler / Uncoiler	Coil Width	Max. 600mm
	I.D	508-610mm
	O.D	Max. 1500mm
Pinch Feeding & Leveling	Feeding roller	4 Rollers
Pinch Feeding & Leveling	Leveling roller	7 Rollers ( upper 3 rollers, bottom 4 rollers )
Punching	Punching type	Hydraulic Punching
Punching	Punching die	Cr12Mov, quenched, HRC58-62
Roll Forming Machine	Forming stations	14 Stations ( Depend on Profiles )
	Roller material	GCr15 steel, HRC58-62
	Diameter of shaft	80mm
	Shaft material	High grade 45# steel
	Drive type	Chain transmission
	Forming speed	0-15m/min
	Main power	15KW
Cutting	Cutting type	Hydraulic cutting
	Cutting blade	Cr12Mov, quenched
	Cutting Tolerance	10m+/-1.5mm
	Encoder	OMRON Brand
Electrical control	PLC	PANASONIC Brand or Custom-made
	Inverter	YASKAWA Brand or Custom-made
	Touch screen	MCGS Brand or Custom-made
	Operation type	Touch screen & Button
Hydraulic Station	Hydraulic station	Famous Chinese brand
Hydraulic Station	Hydraulic Power	7.5KW
Runout Table	Table type	Simple nonpower type
Runout Table	Function	To support the finished panels

Working Flow

Decoiler ---> Fedding & Leveling ---> Punching ---> Roll Forming ---> Cut-to-length ---> Run out table

GI , Carbon Steel Top Hat Purlin Cold Roll Forming Machine With Manual / Hydraulic Uncoiler

Main Components

Decoiler / Uncoiler	1 Unit
Pinch Feeding & Leveling	1 Unit
Punching	1 Unit
Main Roll Forming Machine	1 Unit
Cutting To Length	1 Unit
Hydraulic Station	1 Unit
PLC Computer Control Board	1 Unit
Runout Table	2 Units

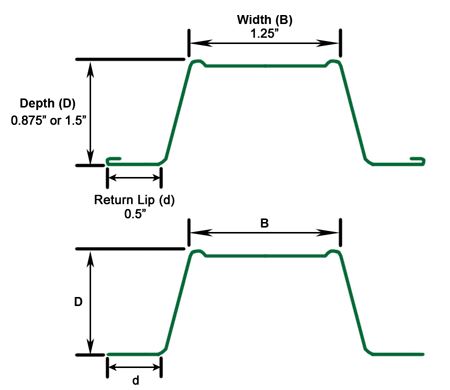

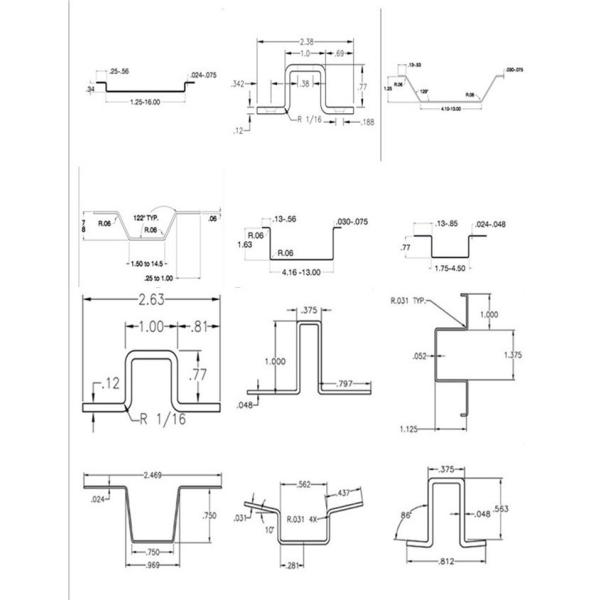

Reference Profile Drawing

GI , Carbon Steel Top Hat Purlin Cold Roll Forming Machine With Manual / Hydraulic Uncoiler

More Reference Machine Pictures

GI , Carbon Steel Top Hat Purlin Cold Roll Forming Machine With Manual / Hydraulic Uncoiler
